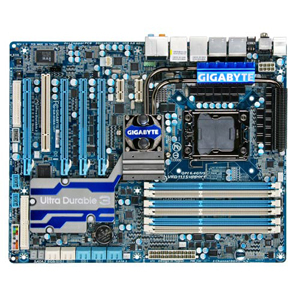

Gigabyte X58A-UD7 ATX LGA1366 X58 DDR3 4PCI-E SATA6GB USB3.0 2GLAN 3-WAY CrossFireX SLI Motherboard

The GIGABYTE Ultra Durable 3 GA-X58A-UD7 Desktop Board delivers all the killer next generation features that gaming enthusiasts and power users have been waiting for including GIGABYTE 333 Onboard Acceleration. Ultra Durable 3 GA-X58A-UD7 Desktop Board supports triple channel DDR3 memory for blazing fast memory performance.

Photos may not resemble actual product and are purely for illustration purposes

$353.21 Canadian Funds

In Stock
(usually ships in 1-2 business days)
Stock Check:   Vancouver ( 20 )
Toronto ( 15 )


Add to Wish List

SKU: 223711
VPN: GA-X58A-UD7
Shipping Weight: 10 lbs
More products from Gigabyte

Customer Reviews:  Write a review.

Specifications

64-bit Processing    Yes
Additional Information
  • Support for DDR3 2200MHz memory module
  • I/O Controller iTE IT8720 chip
  • BIOS:

  • 2 x 16 Mbit flash
  • Use of licensed AWARD BIOS
  • Support for DualBIOS
  • PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
  • Audio Channels    7.1
    Back Panel Interfaces    1 x mini-DIN Keyboard 1 x mini-DIN Mouse 1 x Toslink S/PDIF Out 1 x S/PDIF Out 2 x IEEE 1394a FireWire 4 x Type A USB 2.0 USB 2 x Type A USB 3.0 USB 2 x RJ-45 Network 1 x Mini-phone Audio Line In 1 x Mini-phone Microphone 4 x Mini-phone Audio Line Out 2 x eSATA/USB Combo
    Brand Name    GIGA-BYTE
    Buttons & Keys    CMOS Clear
    Chipset Manufacturer    Intel
    Chipset Model    X58 Express
    Dimensions    305 mm Width x 244 mm Depth
    Expansion Slots    4 x PCI Express x16 2 x PCI Express x1 1 x PCI
    Floppy Controller    Yes
    Form Factor    ATX
    Gigabit Ethernet    Yes
    Green Compliance    Yes
    Green Compliance Certificate/Authority    RoHS WEEE
    IDE Controller    Yes
    IDE Standard    Ultra ATA/133 (ATA-7)
    Internal Interfaces    1 x HDD LED 1 x Power LED 1 x On/Off Switch 1 x Reset Switch 1 x Audio Header 1 x CD-in/Aux-in Connector 1 x S/PDIF In 1 x S/PDIF Out 2 x USB Header 1 x FireWire Header
    Manufacturer    GIGA-BYTE TECHNOLOGY CO
    Manufacturer Part Number    GA-X58A-UD7
    Manufacturer Website Address    www.giga-byte.com
    Marketing Information

    The GIGABYTE Ultra Durable 3 GA-X58A-UD7 Desktop Board delivers all the killer next generation features that gaming enthusiasts and power users have been waiting for including GIGABYTE 333 Onboard Acceleration. Ultra Durable 3 GA-X58A-UD7 Desktop Board supports triple channel DDR3 memory for blazing fast memory performance.

    Maximum Memory    24 GB
    Memory Standard    DDR3-1333/PC3-10600 DDR3-1066/PC3-8500 DDR3-800/PC3-6400
    Memory Technology    DDR3 SDRAM
    Multi GPU Support    CrossFireX SLI
    Number of IDE Interfaces    1
    Number of Memory Slots    6
    Number of SATA Interfaces    12
    Processor Socket    Socket B LGA-1366
    Processor Support    Core i7
    Processor Technology    Enhanced SpeedStep Technology
    Product Model    GA-X58A-UD7
    Product Name    Ultra Durable 3 GA-X58A-UD7 Desktop Board
    Product Series    Ultra Durable 3
    Product Type    Desktop Motherboard
    QuickPath Interconnect    6.40 GT/s
    RAID Controller    Yes
    RAID Levels    0 1 5 1+0 JBOD
    SATA Controller    Yes
    SATA Standard    Serial ATA/300
    Sound Controller Manufacturer    Realtek
    Sound Controller Model    ALC889
    Total Processor Support    1

    Reviews

    Rated by John_Y,

    I have tested 5 mainboard past 3 years and this one is one of the best, it has eveything i needed plus it is stable and fast      » READ MORE

    Warranty


    Currently Gigabyte accepts end users’ requests on RMA service.
    Motherboards, Video cards, servers and Rackmount server boards carry three years limited warranty.

    Warranty Effective On Date of Manufacture

    Gigabyte determines warranty based on the manufacture date. The manufacture date can be verified by the serial number found on the product. The first four digits after "SN" determine the year and week of manufacturing date. For example:

    "01)04719331729028(21) SN0213030585" represents the 13th week of 2002

    RMA Request Procedures and Guidelines

    • All RMA request forms must be completed in order to obtain a RMA number

    • RMA request with missing or incorrect serial number(s) may result in a delayed process or a rejection of request

    • Any model discrepancy for received items may result in a delayed processing timeProducts received with no RMA number may delay processing or refusal
      (Gigabyte will not be responsible for items received without proper information)
    • No cross shipping or advanced replacements under any circumstances

    • Products will either be repaired or replaced at our discretion

    • Replacements may include new or refurbished products
      (Replacements will be for the exact or equivalent product)
    • Average turnaround time will be 2-3 business working weeks upon receipt (applies to quantities not exceeding 20 pieces)
    • If the information on your request varies from the actual item(s) received, RMA will be based on the actual item(s) received
    • RMA numbers will be valid for 30 days after issued date
    • Gigabyte will provide one way freight via UPS or FedEx ground free of charge
    • For consecutive violation for No Trouble Found (NTF), a testing fee per NTF board or system may apply.

    Warranty Period by Product

    • Motherboards
      • All motherboards carry a 3 year limited warranty (First 2 years parts & labor, 3rd year parts only)
    • Graphic Accelerator Cards (VGA)
      • All graphic cards carry a 3 year limited warranty (First 2 years parts & labor, 3rd year parts only)
    • Servers(Server Boards/Barebone Server System)
      • Server Boards carry a 3 years limited warranty (First 2 years parts & labor, 3rd year labor only)
      • Rackmount server boards carry a 3 year limited warranty (First 2 years parts and labor, 3rd year labor only)
      • Rackmount components carry a 2 year limited warranty
    • PC Barebones System
      • Motherboards assembled with barebones systems carry a 3 years limited warranty (1st year parts & labor, 2nd and 3rd year labor only)
        * Gigabyte shall provide the fees/charges for parts upon testing of motherboards in their 2nd and 3rd year of warranty
    • Peripherals (Coolers, Keyboards, Mouse, Optical Devices, etc.)
      • All peripherals carry a 1 year limited warranty
    • Notebook
      • All notebooks carry a 1 year limited warranty
    • Wireless and Networking Products
      • All wireless and networking products carry a 1 year limited warranty

    Please register at http://rma.gigabyte-usa.com/DirectRMA/EndUser_Main.asp for your RMA account!
