| 64-bit Processing |
Yes
|
| Audio Channels |
7.1
|
| Audio Line In |
Yes
|
| Audio Line Out |
Yes
|
| Brand Name |
ROG
|
| Buttons & Keys |
CMOS Clear
GO
Reset
Power
ROG Connect On/Off
|
| Certifications & Standards |
|
| Chipset Manufacturer |
Intel
|
| Chipset Model |
X79 Express
|
| Controller Type |
Serial ATA/600
Serial ATA/300
|
| Depth |
9.6"
|
| eSATA |
Yes
|
| Form Factor |
ATX
|
| Gigabit Ethernet |
Yes
|
| Green Compliance Certificate/Authority |
REACH
WEEE
|
| Green Compliant |
Yes
|
| Manufacturer |
ASUS Computer International
|
| Manufacturer Part Number |
RAMPAGE IV FORMULA
|
| Manufacturer Website Address |
usa.asus.com
|
| Marketing Information |
Looking to upgrade to a new X79 Intel motherboard to play the latest games. Look no further than the ROG Rampage IV Formula, with features designed to give you an unforgettable gaming experience. Finding the highest quality audio used to be nay impossible from on board audio, but the Rampage IV Formula features a Supreme FX III audio solution with 8-channel HD surround sound that's delivered straight to your ears. Featuring a carefully selected 1500uF Capacitor, golden plated audio connections and a unique motherboard layout that actively blocks out digital interference to the analog signals, you'll hear all the heart-pounding action in crystal clarity, no matter where it's coming from.
|
| Maximum Memory |
32 GB
|
| Memory Form Factor |
DIMM
|
| Memory Standard |
DDR3-2400/PC3-19200 (O.C.)
DDR3-2200/PC3-17600 (O.C.)
DDR3-2133/PC3-17000 (O.C.)
DDR3-2000/PC3-16000 (O.C.)
DDR3-1800/PC3-14400 (O.C.)
DDR3-1600/PC3-12800
DDR3-1333/PC3-10600
DDR3-1066/PC3-8500
|
| Memory Technology |
DDR3 SDRAM
|
| Microphone Port |
Yes
|
| Multi GPU Supported |
SLI
CrossFireX
|
| Network (RJ-45) |
Yes
|
| Number of eSATA Ports |
2
|
| Number of Memory Slots |
4
|
| Number of Network (RJ-45) Ports |
1
|
| Number of Onboard USB 2.0 Ports |
6
|
| Number of Onboard USB 3.0 Ports |
2
|
| Number of PCI Express x1 Slots |
2
|
| Number of PCI Express x16 Slots |
4
|
| Number of PS/2 Ports |
1
|
| Number of S/PDIF Out Ports |
1
|
| Number of SATA Interfaces |
8
|
| Number of Total Expansion Slots |
6
|
| Number of USB 2.0 Ports |
6
|
| Number of USB 3.0 Ports |
4
|
| Onboard Audio Header |
Yes
|
| Onboard LEDs Header |
Yes
|
| Onboard S/PDIF Header |
Yes
|
| Package Contents |
- Rampage IV Formula Desktop Motherboard
- User's Manual
- I/O Shield
- 4 x SATA 3Gb/s Cable(s)
- 4 x SATA 6Gb/s Cable(s)
- 1 x 3-Way SLI Bridge(s)
- 1 x SLI Bridge(s)
- 1 x CrossFire Cable(s)
- 1 x Q-connector(s) (2 in 1)
- 1 x ROG Connect Cable(s)
- 1 x ROG Theme Label(s)
- 1 x 12 in 1 ROG Cable Label(s)
- 1 x X-Socket Pad(s)
- 1 x ROG Door Hanger(s)
- 1 x Support DVD
|
| PCI Express Standard |
PCI Express 3.0
PCI Express 2.0
|
| Power Supply Supported |
EPS12V
|
| Processor Socket |
Socket R LGA-2011
|
| Processor Supported |
Core i7
|
| Processor Technology |
Turbo Boost 2.0 Technology
Virtualization Technology
Enhanced SpeedStep Technology
Hyper-Threading Technology
|
| Product Model |
Rampage IV Formula
|
| Product Name |

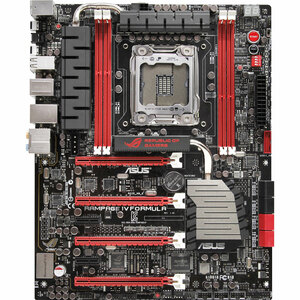

Rampage IV Formula Desktop Motherboard
|
| Product Type |
Desktop Motherboard
|
| PS/2 Port |
Yes
|
| RAID Levels |
0
1
5
1+0
|
| RAID Supported |
Yes
|
| S/PDIF |
Yes
|
| Sound Controller Manufacturer |
Creative
|
| Sound Controller Model |
SupremeFX III
|
| Total Number of Onboard USB Ports |
8
|
| Total Number of PCI Express Slots |
6
|
| Total Number of USB Ports |
10
|
| Total Processor Supported |
1
|
| Width |
12.0"
|
