EnGenius EOA7535 Wireless 802.11A/B/G/N Dual Radio High Power 600MW Repeater W/ Metal Housing
EOA7535 equips with two powerful independent RF radios which support 802.11a and 802.11b/g. With industrial IP-68 rugged enclosure, RF Lightning Protector & Ethernet Surge Arrestor, it is designed to deliver the highest performance and reliability under harsh outdoor environment. Unique multi-function capability provides flexibility in constructing scalable WiFi networks for any possible applications. With two individual radios, each can be configured as 3 different operation modes with maximum of 5 combinations. EOA7535 offers wireless bandwidth up to 54Mbps to accommodate busy traffic services such as file transfers or Internet data uploads and downloads. EOA7535 is the ideal outdoor repeater where it uses 802.11a for long-range backbone network while rebroadcasts wireless signal for client access via 802.11b/g.

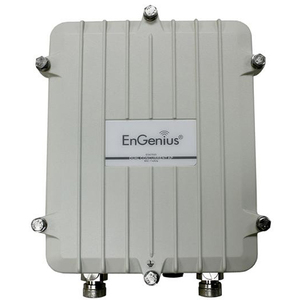

Photos may not resemble actual product and are purely for illustration purposes
|
$361.90 Canadian Funds
In Stock
(usually ships in 4-8 business days)
Free Ground Shipping.
Add to Wish List
|
Specifications
| Antenna Connector |
N-Type
|
| Antenna Gain |
5 dBi
|
| Antenna Type |
Omnidirectional Antenna
|
| Brand Name |
EnGenius
|
| Depth |
245.0 mm
|
| Form Factor |
Wall Mountable
Mast-mountable
|
| Gigabit Ethernet Port |
Yes
|
| Green Compliance Certificate/Authority |
WEEE
|
| Green Compliant |
Yes
|
| Height |
75.0 mm
|
| Input Voltage |
48 V DC
|
| ISM Band |
Yes
|
| ISM Maximum Frequency |
2.48 GHz
|
| ISM Minimum Frequency |
2.40 GHz
|
| Management |
VLAN Quality of Service DHCP Web-based configuration Telnet SNMP V1 , V2c
|
| Manufacturer |
EnGenius Technologies, Inc
|
| Manufacturer Part Number |
EOA7535
|
| Manufacturer Website Address |
www.engeniustech.com
|
| Marketing Information |
EOA7535 equips with two powerful independent RF radios which support 802.11a and 802.11b/g. With industrial IP-68 rugged enclosure, RF Lightning Protector & Ethernet Surge Arrestor, it is designed to deliver the highest performance and reliability under harsh outdoor environment. Unique multi-function capability provides flexibility in constructing scalable WiFi networks for any possible applications. With two individual radios, each can be configured as 3 different operation modes with maximum of 5 combinations. EOA7535 offers wireless bandwidth up to 54Mbps to accommodate busy traffic services such as file transfers or Internet data uploads and downloads. EOA7535 is the ideal outdoor repeater where it uses 802.11a for long-range backbone network while rebroadcasts wireless signal for client access via 802.11b/g.
|
| Number of Antennas |
2
|
| Number of Network (RJ-45) Ports |
1
|
| Package Contents |
EOA7535 Wireless Bridge 1 x 48V/0.375A Power Adapter 1 x Mounting kit 1 x QIG 1 x CD (User Manual) 2 x Dipole Antennas
|
| Power Over Ethernet |
Yes
|
| Power Source |
Power Supply
|
| Product Model |
EOA7535
|
| Product Name |
EOA7535 Wireless Bridge
|
| Product Type |
Wireless Bridge
|
| UNII Band |
Yes
|
| UNII Maximum Frequency |
5.83 GHz
|
| UNII Minimum Frequency |
5.15 GHz
|
| Weight (Approximate) |
1.37 kg
|
| Wi-Fi Standard |
IEEE 802.11a/b/g
|
| Wireless Security |
WPA WPA2 TKIP AES IEEE 802.1X EAP-TLS TTLS MAC address access control list MAC address Filtering NAT WPA-PSK WPA2-PSK 64/128/152-bit WEP IEEE 802.1x PPTP
|
| Wireless Transmission Speed |
54 Mbps
|
|
|
